LED Light |

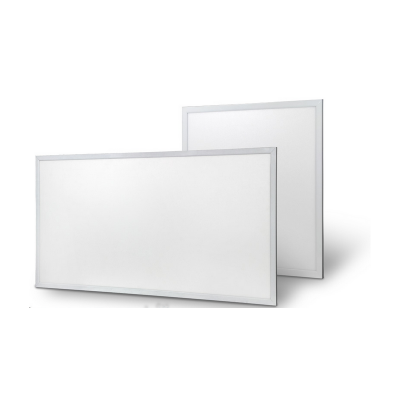

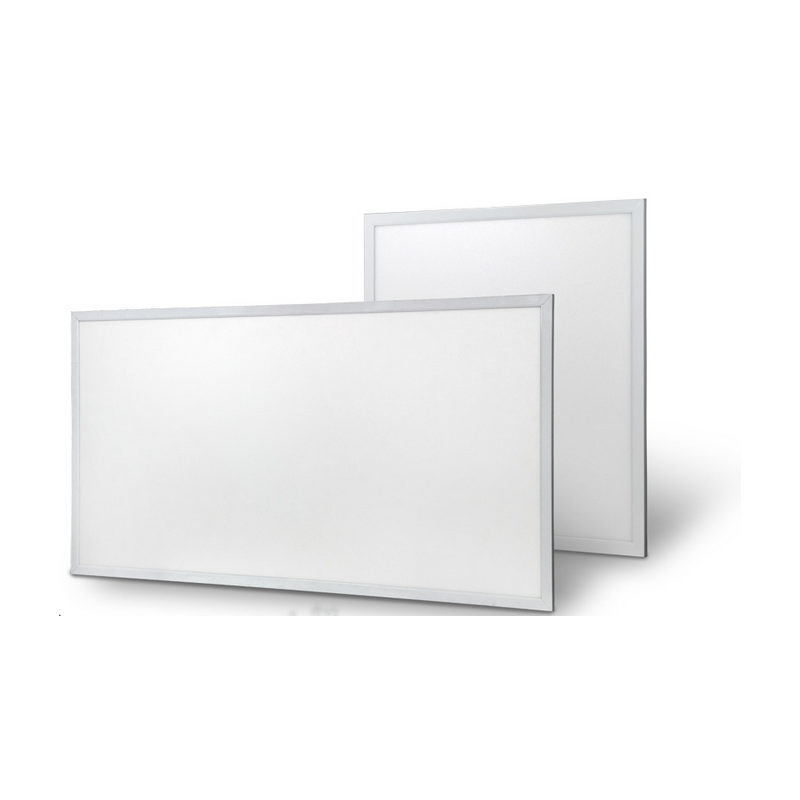

Kernel Series GS/SAA LED Panel
Kernel Series GS/SAA LED Panel
|
|
|
• Input Voltage:
AC90-277V 50/60HZ OR AC200-240V 50/60HZ
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<15%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C
|
Product Name
|
Product Code
|
Rated Power
|
Input
Voltage
|
LED
Type
|
LED
Qty
|
Power Factor
|
Luminous Flux (LM)
|
Lumen Efficacy(LM/W)
|
CRI
|
|
600x600/32W
|
PL1S22RK1-32
|
32W
|
AC90-277V
|
SMD4014
|
208
|
PF>0.95
|
2900-3200
|
90-100
|
Ra>80
|
|
600x600/40W
|
PL1S22RK1-40
|
40W
|
AC90-277V
|
SMD4014
|
234
|
PF>0.95
|
3600-4000
|
90-100
|
Ra>80
|
|
300x1200/32W
|
PL1S41RK1-32
|
32W
|
AC90-277V
|
SMD4014
|
208
|
PF>0.95
|
2900-3200
|
90-100
|
Ra>80
|
|
300x1200/40W
|
PL1S41RK1-40
|
40W
|
AC90-277V
|
SMD4014
|
234
|
PF>0.95
|
3600-4000
|
90-100
|
Ra>80
|
|
620x620/40W
|
PL1S62RK1-40
|
40W
|
AC90-277V
|
SMD4014
|
234
|
PF>0.95
|
3600-4000
|
90-100
|
Ra>80
|
|
600x1200/60W
|
PL1S42RK1-60
|
60W
|
AC90-277V
|
SMD4014
|
312
|
PF>0.95
|
5400-6000
|
90-100
|
Ra>80
|
|
600x1200/72W
|
PL1S42RK1-72
|
72W
|
AC90-277V
|
SMD4014
|
364
|
PF>0.95
|
6500-7200
|
90-100
|
Ra>80
|
