IR-III PTZ camera

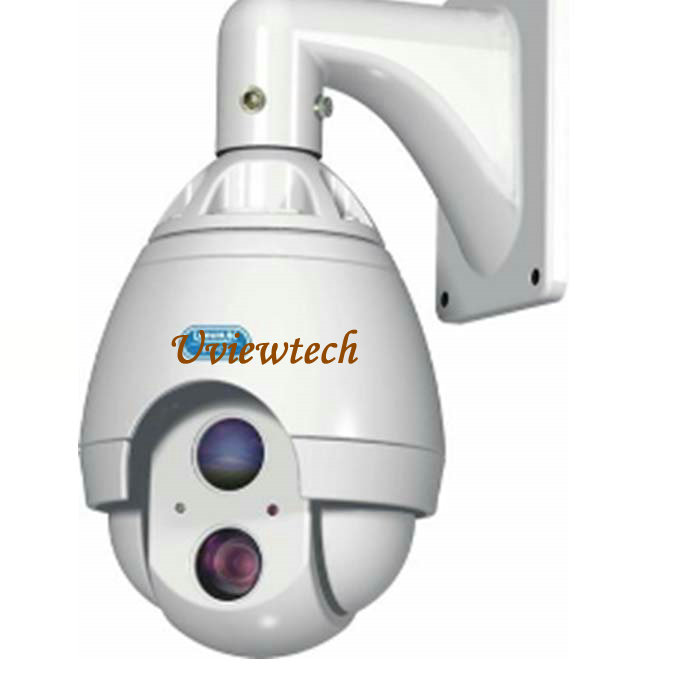

UVT-7PT3A IR-III PTZ camera
|
| Last |
|
-Vandalproof high speed IR-III PTZ camera -Pan range: 0°~360° Continue (Not 355° ) -Tilt range: 0°~90° Flip -Pan Speed: Max 300°/sec Preset: 256 -Weatherproof Outdoor IP66 -IR-III LED working distance: 120~150M -One infrared chip (power consumption 5w), no brightness decline(within 3 years) -Double automatic linear synchronous focusing -RS485, Pelco D/P supported -3 Pattern scan path -6 group programmable scanning track -Operating Temperature: -30? ~ +60? -Size: Ø210x380mm Weight: 8.5Kg
| Model NO. |
Board Specification |
CCD+DSP |
| 7PT3A27XTX |
SAMSUNG SCM-2271, 27X Optical & 16X Digital Zoom, Color 560TVL, Black 680TVL, ATR, ICR |
SCM-2271 |
| 7PT3A33XTX |
SAMSUNG SCM-2331, 33X Optical & 16X Digital Zoom, Color 560TVL, Black 680TVL, ATR, ICR |
SCM-2331 |
| 7PT3A37XTX |
SAMSUNG SCM-2371, 37X Optical & 16X Digital Zoom, Color 560TVL, Black 680TVL, ATR, ICR |
SCM-2371 |
| 7PT3A22KTX |
SONY LR-4922, 22X Optical & 10X Digital Zoom, Color 540TVL, Black 680TVL, ATR, ICR |
LR-4922 |
| 7PT3A18NTX |
SONY FCB-CX480, 18X Optical & 12X Digital Zoom, Color 540TVL, Black 680TVL, ATR, ICR |
FCB-CX480 |
| 7PT3A26NTX |
SONY FCB-CX980, 26X Optical & 12X Digital Zoom, Color 600TVL, Black 700TVL, ATR, ICR |
FCB-CX980 |
